参数调优

Map Task和Reduce Task数目调整

Map Task数目
- Map读取文件时，通过InputFormat计算分割文件
- split大小由以下三个参数决定
  - dfs.blocksize HDFS Block大小
  - mapreduce.input.fileinputformat.split.minsize 划分最小字节数
  - mapreduce.input.fileinputformat.split.maxsize 划分最大字节数
  - 计算公式

1
2
3

protected long computeSplitSize(long blockSize, long minSize, long maxSize) {
return Math.max(minSize, Math.min(maxSize, blockSize));
}

Reduce Task数目
- 默认每个作业Reduce Task数目可以通过mapreduce.job.reduces控制
- 在每个作业中也可以通过Job.setNumReduceTasks(Int number)进行控制

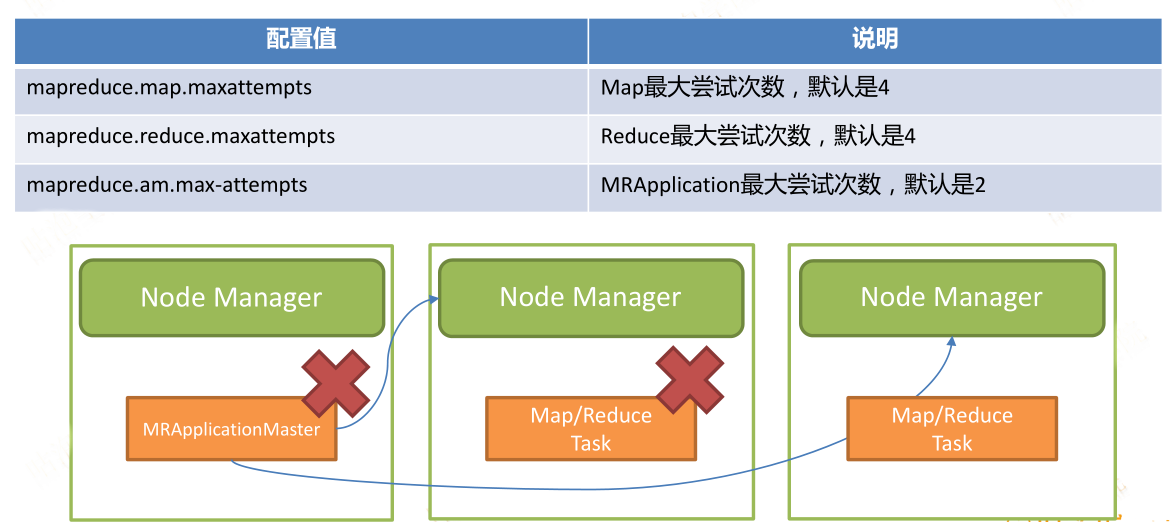

容错参数调整

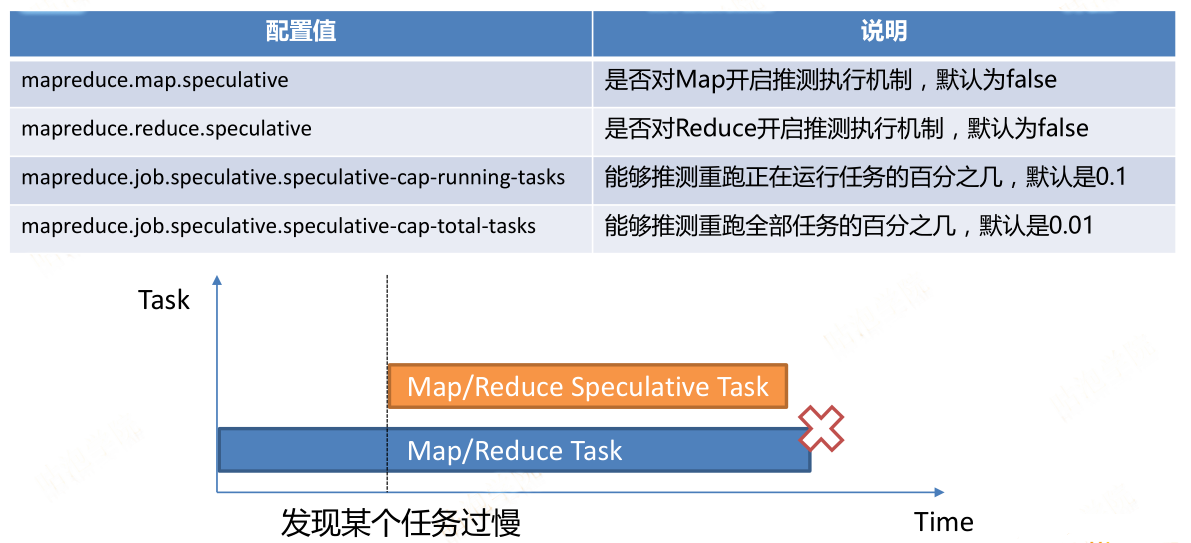

推测执行参数调整

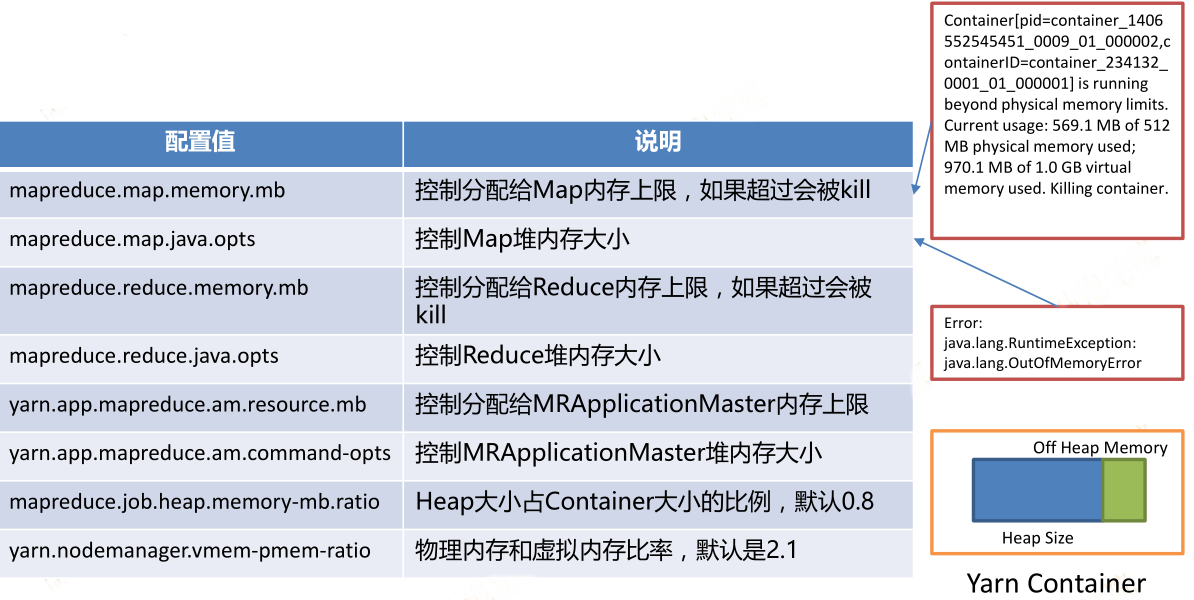

内存参数调整

MapReduce优点和缺点

MapReduce特点
- 模型简单
  - Map + Reduce
- 高伸缩性
  - 支持横向扩展
- 灵活
  - 结构化和非结构化数据
- 速度快
  - 高吞吐离线处理数据
- 并行处理
  - 编程模型天然支持并行处理
- 容错能力强
缺点
- 流式数据-MapReduce处理模型就决定了需要静态数据
- 实时计算-不适合低延迟数据处理，需要毫秒级别响应
- 复杂算法-例如SVM支持向量机
- 迭代计算-例如斐波那契数列

MapReduce编程

环境参考HDFS编程

WordCount案例开发Java版本

package com.kun.hadoop.mapreduce;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;

import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;
/**
 * 使用MapRdeuce开发WordCount应用程序
 */
public class WordCountApp {


    /**
     * Map：读取输入的文件
     */
    public static class MyMapper extends Mapper<LongWritable, Text, Text, LongWritable>{

        LongWritable one = new LongWritable(1);

        @Override
        protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

            // 接收到的每一行数据
            String line = value.toString();

            //按照指定分隔符进行拆分
            String[] words = line.split(" ");

            for(String word :  words) {
                // 通过上下文把map的处理结果输出
                context.write(new Text(word), one);
            }

        }
    }

    /**
     * Reduce：归并操作
     */
    public static class MyReducer extends Reducer<Text, LongWritable, Text, LongWritable> {

        @Override
        protected void reduce(Text key, Iterable<LongWritable> values, Context context) throws IOException, InterruptedException {

            long sum = 0;
            for(LongWritable value : values) {
                // 求key出现的次数总和
                sum += value.get();
            }

            // 最终统计结果的输出
            context.write(key, new LongWritable(sum));
        }
    }

    /**
     * 定义Driver：封装了MapReduce作业的所有信息
     */
    public static void main(String[] args) throws Exception{

        //创建Configuration
        Configuration configuration = new Configuration();

        //创建Job
        Job job = Job.getInstance(configuration, "wordcount");

        //设置job的处理类
        job.setJarByClass(WordCountApp.class);

        //设置作业处理的输入路径
        FileInputFormat.setInputPaths(job, new Path(args[0]));

        //设置map相关参数
        job.setMapperClass(MyMapper.class);
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(LongWritable.class);

        //设置reduce相关参数
        job.setReducerClass(MyReducer.class);
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(LongWritable.class);

        //设置作业处理的输出路径
        FileOutputFormat.setOutputPath(job, new Path(args[1]));

        System.exit(job.waitForCompletion(true) ? 0 : 1);
    }
}

使用IDEA+Maven开发wc：
1）开发
2）编译：mvn clean package -DskipTests
3）上传到服务器：scp target/hadoop-train-XXX.jar
4）运行
hadoop jar /home/hadoop/lib/hadoop-train-1.0.jar com.kun.hadoop.mapreduce.WordCountApp hdfs://hadoop:9000/hello.txt hdfs://hadoop:9000/output/wc

注意：

相同的代码和脚本再次执行，会报错
security.UserGroupInformation:
PriviledgedActionException as:hadoop (auth:SIMPLE) cause:
org.apache.hadoop.mapred.FileAlreadyExistsException:
Output directory hdfs://hadoop:9000/output/wc already exists
Exception in thread “main” org.apache.hadoop.mapred.FileAlreadyExistsException:
Output directory hdfs://hadoop:9000/output/wc already exists

在MR中，输出文件是不能事先存在的
1）先手工通过shell的方式将输出文件夹先删除
hadoop fs -rm -r /output/wc
2) 在代码中完成自动删除功能: 推荐大家使用这种方式
在main中的//创建Configuration下面加入

// 准备清理已存在的输出目录
Path outputPath = new Path(args[1]);
FileSystem fileSystem = FileSystem.get(configuration);
	if(fileSystem.exists(outputPath)){
		  fileSystem.delete(outputPath, true);
		  System.out.println("output file exists, but is has deleted");
	}

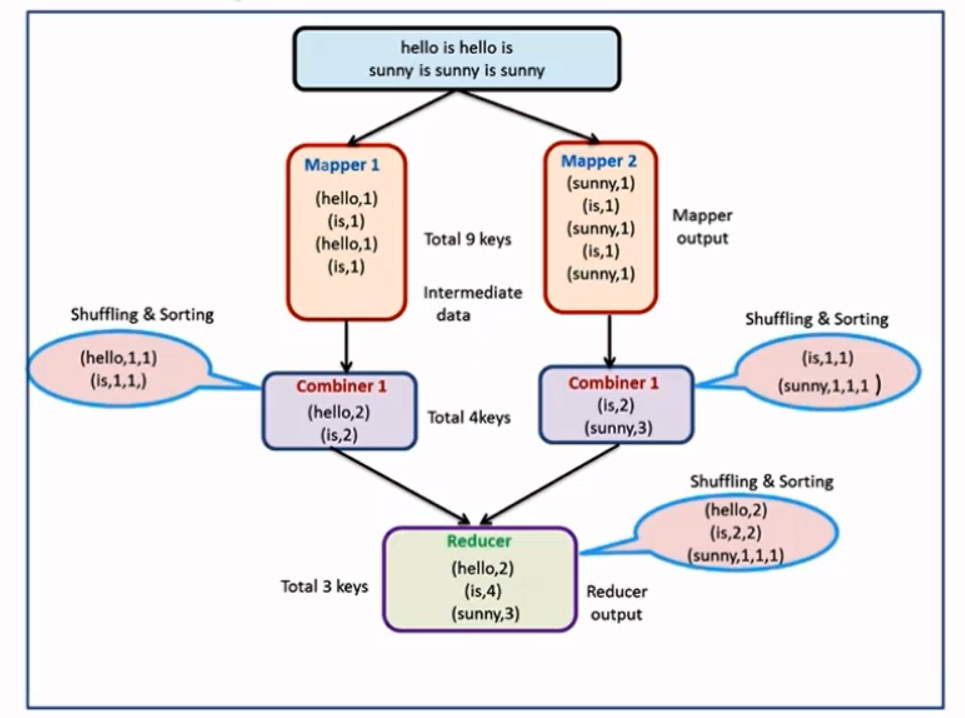

Combiner

本地的reducer
减少Map Tasks输出的数据量及数据网络传输量

Combiner案例开发

package com.kun.hadoop.mapreduce;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

/**
 * 使用MapReduce开发WordCount应用程序
 */
public class CombinerApp {

    /**
     * Map：读取输入的文件
     */
    public static class MyMapper extends Mapper<LongWritable, Text, Text, LongWritable>{

        LongWritable one = new LongWritable(1);

        @Override
        protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

            // 接收到的每一行数据
            String line = value.toString();

            //按照指定分隔符进行拆分
            String[] words = line.split(" ");

            for(String word :  words) {
                // 通过上下文把map的处理结果输出
                context.write(new Text(word), one);
            }

        }
    }

    /**
     * Reduce：归并操作
     */
    public static class MyReducer extends Reducer<Text, LongWritable, Text, LongWritable> {

        @Override
        protected void reduce(Text key, Iterable<LongWritable> values, Context context) throws IOException, InterruptedException {

            long sum = 0;
            for(LongWritable value : values) {
                // 求key出现的次数总和
                sum += value.get();
            }

            // 最终统计结果的输出
            context.write(key, new LongWritable(sum));
        }
    }

    /**
     * 定义Driver：封装了MapReduce作业的所有信息
     */
    public static void main(String[] args) throws Exception{

        //创建Configuration
        Configuration configuration = new Configuration();

        // 准备清理已存在的输出目录
        Path outputPath = new Path(args[1]);
        FileSystem fileSystem = FileSystem.get(configuration);
        if(fileSystem.exists(outputPath)){
            fileSystem.delete(outputPath, true);
            System.out.println("output file exists, but is has deleted");
        }

        //创建Job
        Job job = Job.getInstance(configuration, "wordcount");

        //设置job的处理类
        job.setJarByClass(CombinerApp.class);

        //设置作业处理的输入路径
        FileInputFormat.setInputPaths(job, new Path(args[0]));

        //设置map相关参数
        job.setMapperClass(MyMapper.class);
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(LongWritable.class);

        //设置reduce相关参数
        job.setReducerClass(MyReducer.class);
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(LongWritable.class);

        //通过job设置combiner处理类，其实逻辑上和我们的reduce是一模一样的
        job.setCombinerClass(MyReducer.class);

        //设置作业处理的输出路径
        FileOutputFormat.setOutputPath(job, new Path(args[1]));

        System.exit(job.waitForCompletion(true) ? 0 : 1);
    }
}

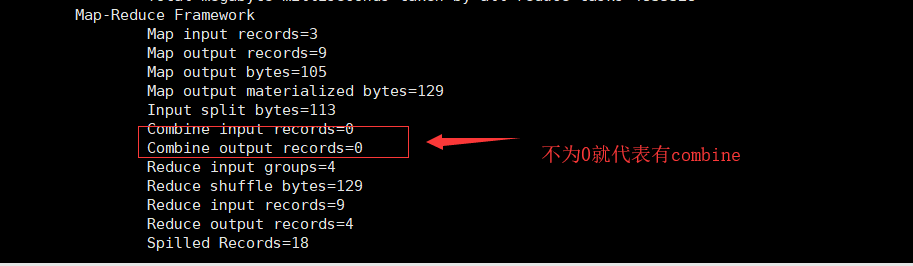

在运行过程中可以看出有没有combine

hadoop jar /home/hadoop/lib/hadoop-train-1.0.jar com.kun.hadoop.mapreduce.CombinerApp hdfs://hadoop:9000/hello.txt hdfs://hadoop:9000/output/wc

使用场景：
求和、次数 +
平均数 X

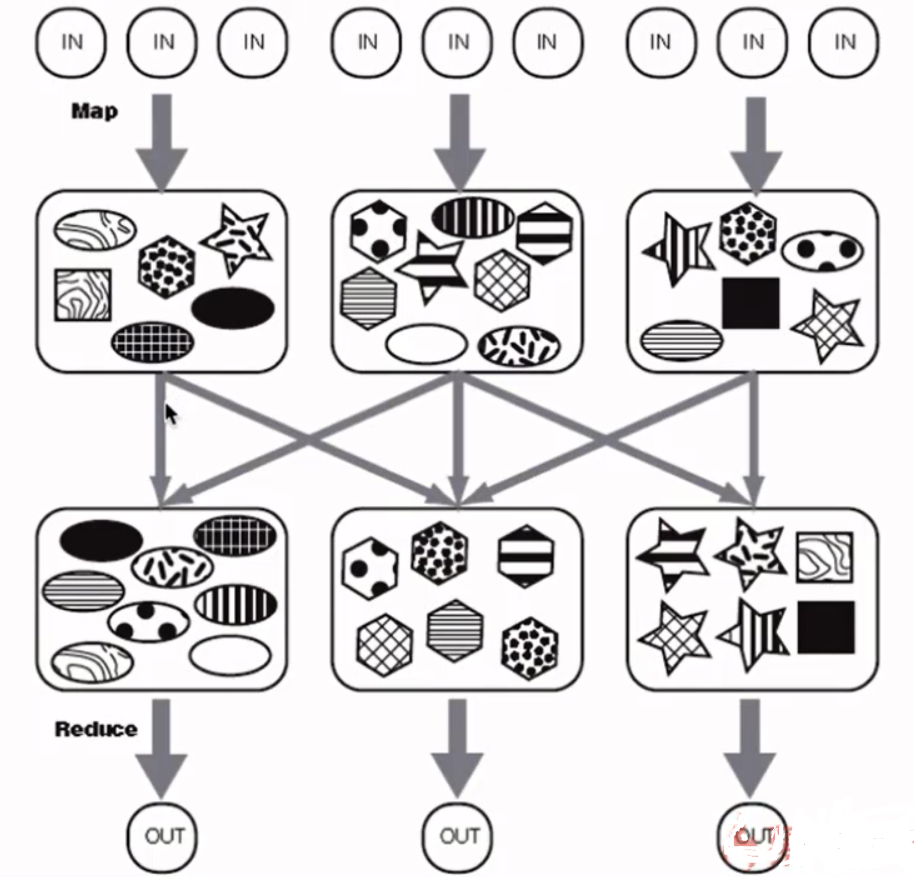

Partitoner

需求：相同类型的手机丢到一个reduce里

xiaomi 200
huawei 300
xiaomi 100
huawei 200
iphone7 300
iphone7 500
nokia 20

package com.kun.hadoop.mapreduce;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Partitioner;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

public class ParititonerApp {

    /**
     * Map：读取输入的文件
     */
    public static class MyMapper extends Mapper<LongWritable, Text, Text, LongWritable>{

        @Override
        protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

            // 接收到的每一行数据
            String line = value.toString();

            //按照指定分隔符进行拆分
            String[] words = line.split(" ");

            context.write(new Text(words[0]), new LongWritable(Long.parseLong(words[1])));

        }
    }

    /**
     * Reduce：归并操作
     */
    public static class MyReducer extends Reducer<Text, LongWritable, Text, LongWritable> {

        @Override
        protected void reduce(Text key, Iterable<LongWritable> values, Context context) throws IOException, InterruptedException {

            long sum = 0;
            for(LongWritable value : values) {
                // 求key出现的次数总和
                sum += value.get();
            }

            // 最终统计结果的输出
            context.write(key, new LongWritable(sum));
        }
    }

    public static class MyPartitioner extends Partitioner<Text, LongWritable> {

        @Override
        public int getPartition(Text key, LongWritable value, int numPartitions) {

            if(key.toString().equals("xiaomi")) {
                return 0;
            }

            if(key.toString().equals("huawei")) {
                return 1;
            }

            if(key.toString().equals("iphone7")) {
                return 2;
            }

            return 3;
        }
    }


    /**
     * 定义Driver：封装了MapReduce作业的所有信息
     */
    public static void main(String[] args) throws Exception{

        //创建Configuration
        Configuration configuration = new Configuration();

        // 准备清理已存在的输出目录
        Path outputPath = new Path(args[1]);
        FileSystem fileSystem = FileSystem.get(configuration);
        if(fileSystem.exists(outputPath)){
            fileSystem.delete(outputPath, true);
            System.out.println("output file exists, but is has deleted");
        }

        //创建Job
        Job job = Job.getInstance(configuration, "wordcount");

        //设置job的处理类
        job.setJarByClass(ParititonerApp.class);

        //设置作业处理的输入路径
        FileInputFormat.setInputPaths(job, new Path(args[0]));

        //设置map相关参数
        job.setMapperClass(MyMapper.class);
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(LongWritable.class);

        //设置reduce相关参数
        job.setReducerClass(MyReducer.class);
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(LongWritable.class);

        //设置job的partition
        job.setPartitionerClass(MyPartitioner.class);
        //设置4个reducer，每个分区一个
        job.setNumReduceTasks(4);

        //设置作业处理的输出路径
        FileOutputFormat.setOutputPath(job, new Path(args[1]));

        System.exit(job.waitForCompletion(true) ? 0 : 1);
    }
}

Partitioner
hadoop jar /home/hadoop/lib/hadoop-train-1.0.jar com.kun.hadoop.mapreduce.ParititonerApp hdfs://hadoop:9000/partitioner hdfs://hadoop:9000/output/partitioner

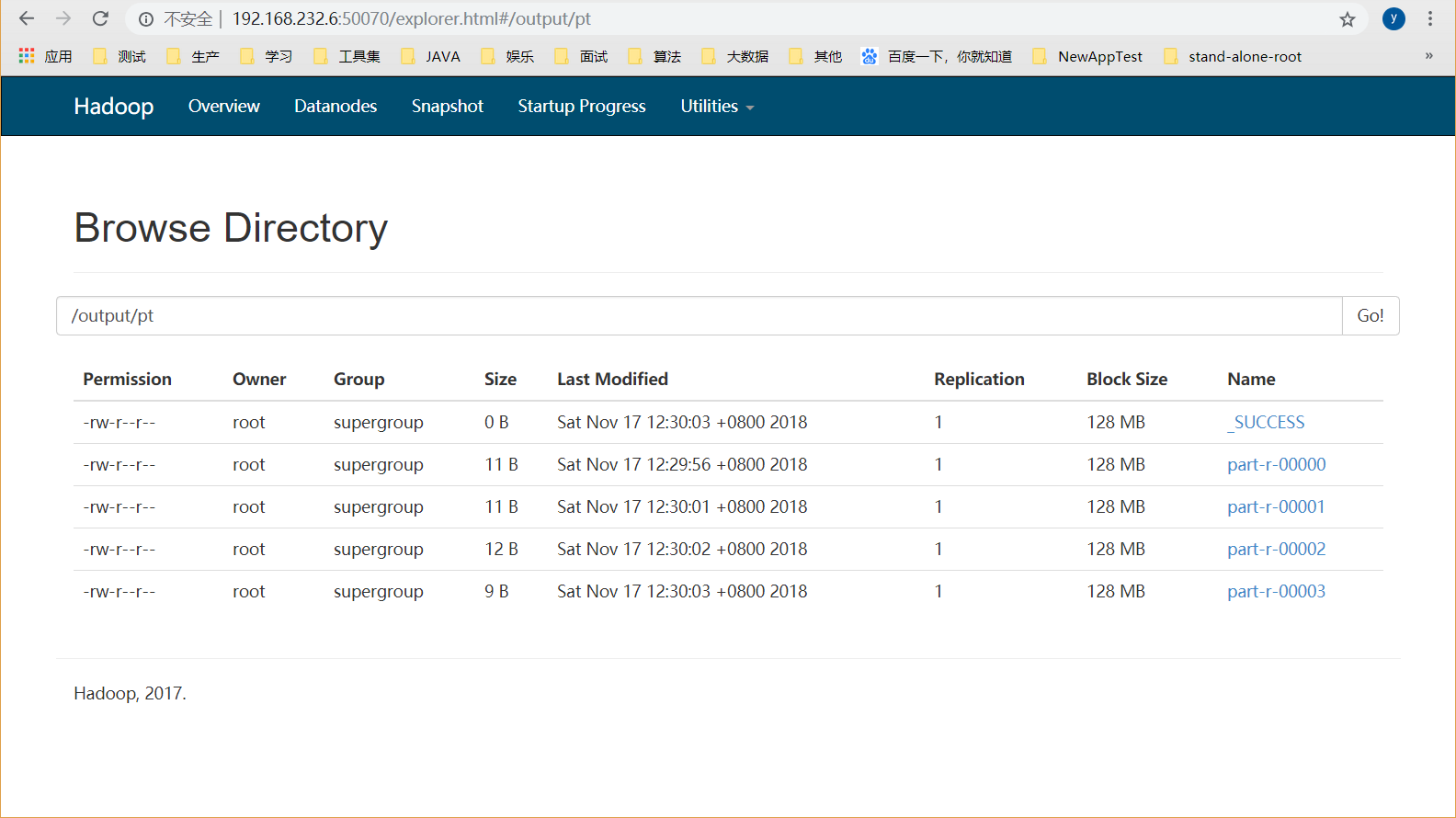

如下图；四个分区结果

使用场景：
数据倾斜情况下可以分区来处理

jobhistory开启

记录已运行完的MapReduce信息到指定的HDFS目录下
默认是不开启的

修改hadoop_home/etc/hadoop/mapred-site.xml

<property>
    <name>mapreduce.jobhistory.address</name>
    <value>hadoop:10020</value>
</property>

<property>
    <name>mapreduce.jobhistory.webapp.address</name>
    <value>hadoop:19888</value>
</property>

<property>
    <name>mapreduce.jobhistory.done-dir</name>
    <value>/history/done</value>
</property>

<property>
    <name>mapreduce.jobhistory.intermediate-done-dir</name>
    <value>/history/done_intermediate</value>
</property>

重新启动yarn集群

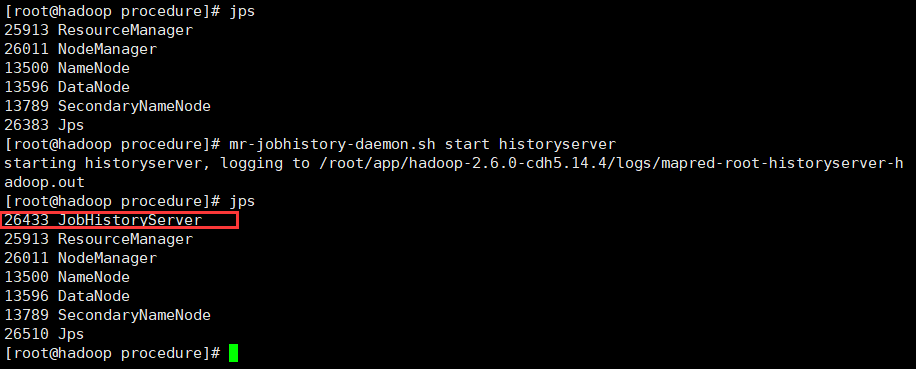

启动jobhistory
mr-jobhistory-daemon.sh start historyserver

此时就可进入JobHistoryServer界面

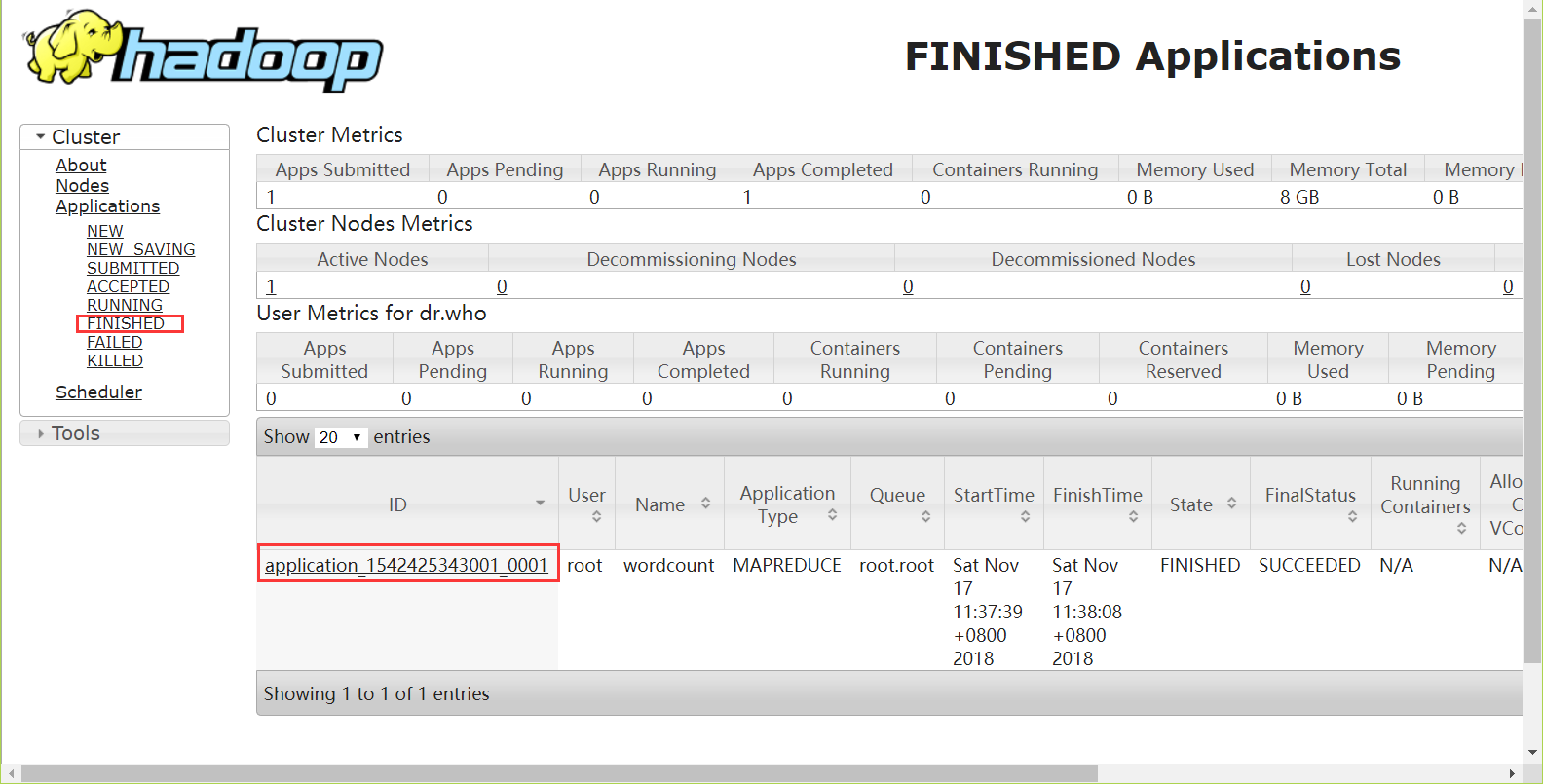

下图流程解释进入JobHistoryServer界面操作；点击finishd，点击运行完毕的作业
【Yarn界面】

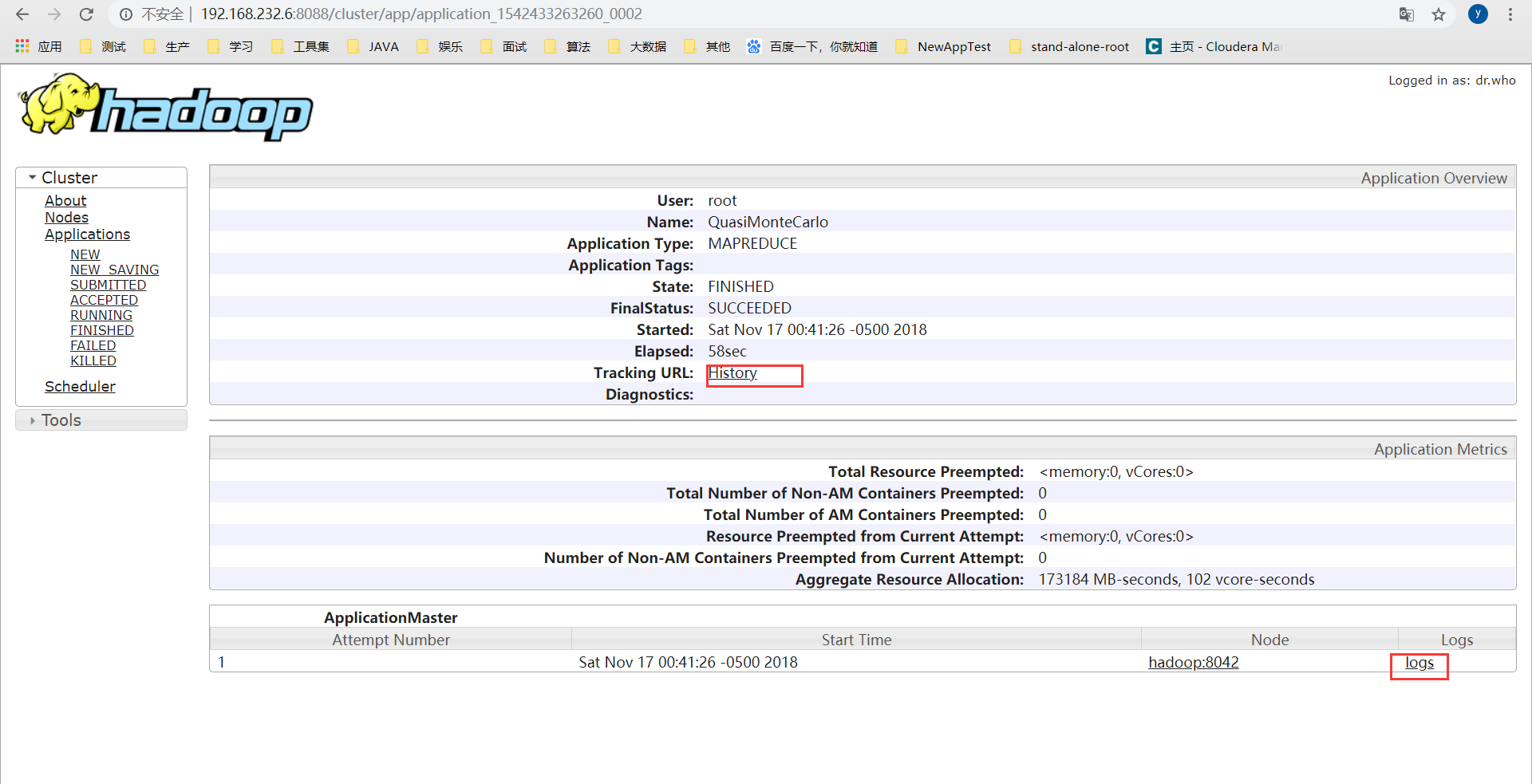

点击History
【Yarn界面】

进入History(JobHistoryServer界面)

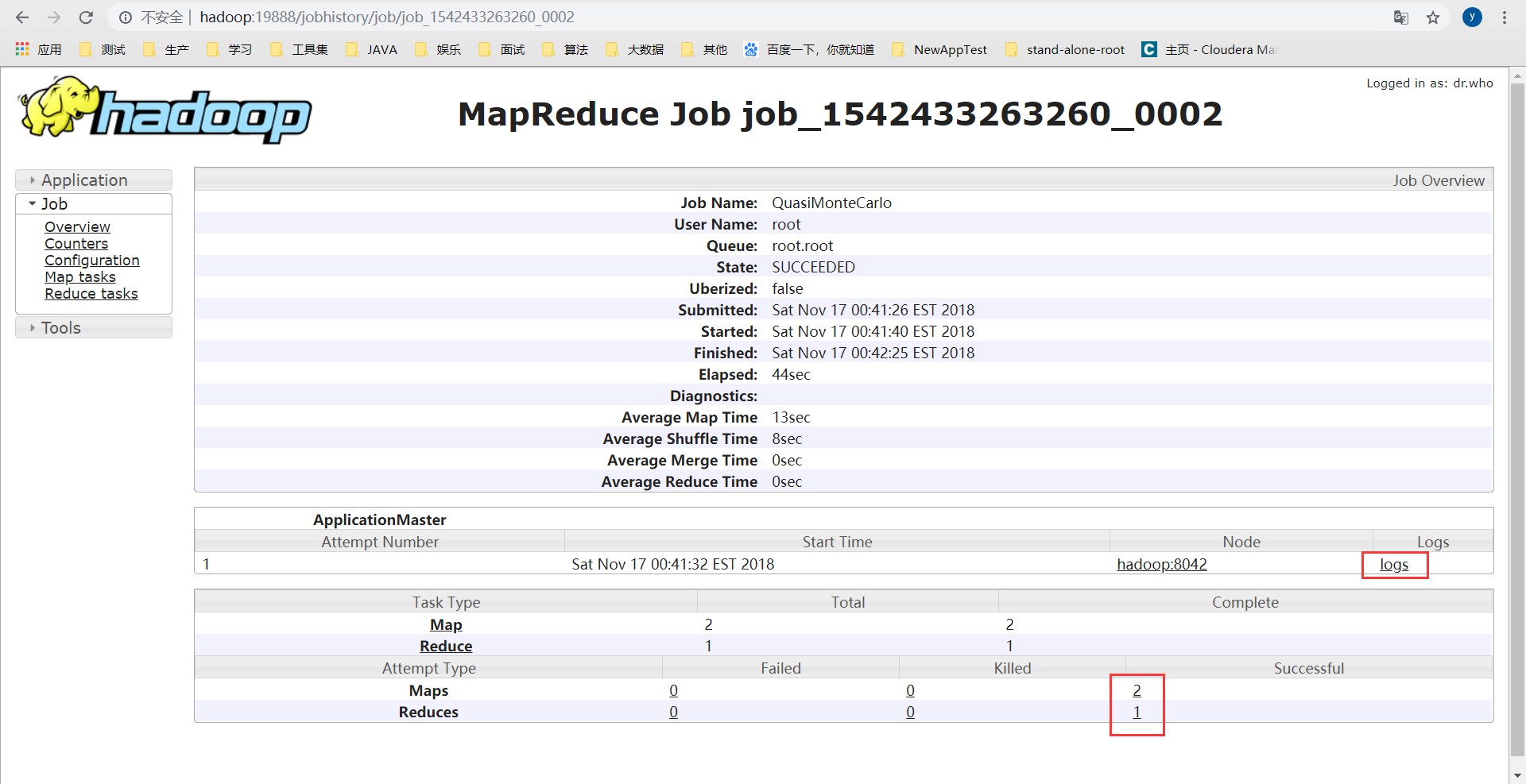

【JobHistoryServer界面】

错误解决：

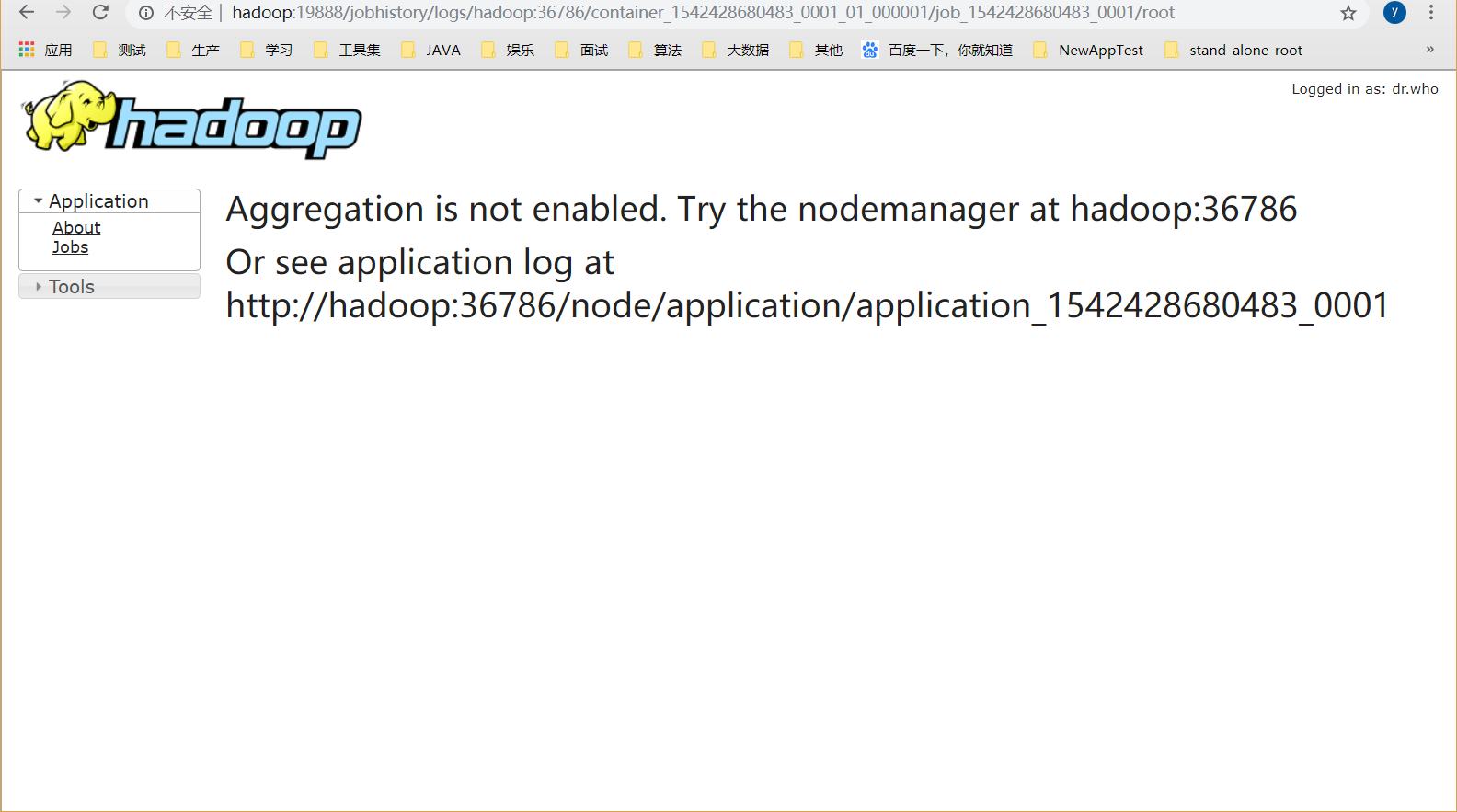

History需要配置，配置后可点击进入JobHistoryServer界面；但是点击JobHistoryServer界面【logs】就会报错见【错误图一】；【错误图一】解决后再次点击yarn界面的【logs】会遇到【错误图二】

【错误图一】

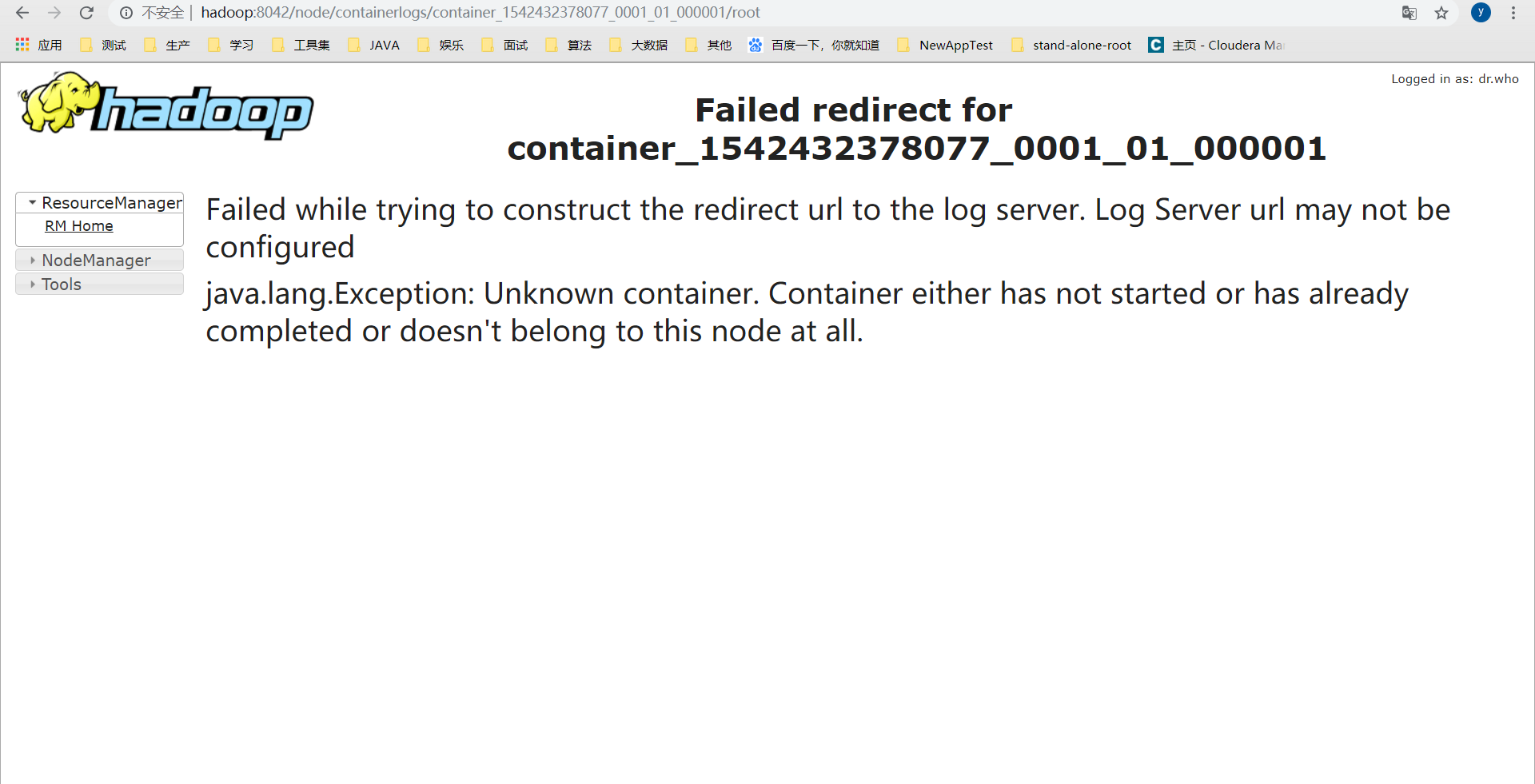

解决上诉JobHistoryServer界面问题后，yarn界面的logs点击后可能会遇到下图错误-错误解决配置yarn.log.server.url的路径
【错误图二】

修改配置文件修改hadoop_home/etc/hadoop/yarn-site.xml
增加

<property>
    <name>yarn.log-aggregation-enable</name>
    <value>true</value>
</property>

 <property>
    <name>yarn.log.server.url</name>
    <value>http://hadoop:19888/jobhistory/logs</value>
</property>

重新启动JobHistoryServer和yarn集群
stop-yarn.sh
mr-jobhistory-daemon.sh stop historyserver
start-yarn.sh
mr-jobhistory-daemon.sh start historyserver
进入hadoop_home/share/hadoop/mapreduce 运行一个官方demo
再次查看结果logs就没有错误了

1	[root@hadoop mapreduce]# hadoop jar hadoop-mapreduce-examples-2.6.0-cdh5.14.4.jar pi 2 3
